A machine shop lines its CNC machines up in rows, with chip bins at the ends, coolant drums along a wall and pallets of bar stock by the door. A layout drawing or a photo of a sketch turns into a free draft marking the exits, the routes to them and a meeting point; the sections below on oil-mist fires, burning chips and crowded aisles are for checking it.
This is a draft to check, not a fire inspection or an approval of your machines. Federal OSHA or your state plan and the local fire code set the rules, so walk every aisle before the map goes up.
Oil machines and EDMs
Some of the oil in a machine shop never leaves the machines: straight cutting oil, the mist it leaves inside the enclosure and, on a sinker EDM that runs in oil, the tank the work sits in. Know which machines those are, mark them, and keep the right extinguisher within reach.
OSHA’s definition of a Class B fire covers flammable or combustible liquids, flammable gases, greases and similar materials (29 CFR 1910.155(c)(9)). Cutting oil, way oil and EDM dielectric oil all fit that description, so the extinguisher you show beside these machines should be one rated for Class B fires.
Where employees are given extinguishers for Class B fires, the travel distance from the Class B hazard area to an extinguisher is 50 feet or less (29 CFR 1910.157(d)(4)). Measure the walk around the machines, the way someone would really go, not a straight line across them.
If your sinker EDM runs in dielectric oil, read what the maker’s manual says about the oil level over the work, the filters and any fire detection or automatic shutdown the machine has, and follow it. Keep the floor around the tank clear and show the machine on the posted map, so everyone knows where the oil is.
| Where it is | On the map | Source |
|---|---|---|
| Machines cutting with straight oil | Mark each one, with a Class B extinguisher no more than 50 feet of travel away. | 1910.157(d)(4) |
| The sinker EDM and its oil tank | Show the machine and its tank, so nobody is surprised by where the oil is. | The machine maker’s manual |
| Drums of cutting oil and coolant | Against a wall outside the aisle; nothing is stored in an exit route, even for a day. | 1910.37(a)(3) |
| Cleanup solvent | If it’s a flammable liquid, the storage cabinet it sits in holds no more than 60 gallons of Category 1, 2 or 3 liquids. | 1910.106(d)(3)(i) |
Machine rows and night shift
Rows of machines make natural aisles, until a pallet of bar stock or a parts cart parks in one. The routes also have to work on the night shift, when a few operators may be the only people in the building.
At night, the person who knows who is in the building may be the lead operator, not the office manager. Keep the shift roster where that person can grab it on the way out, so the head count at the meeting point is quick.
Assembly point · the generator
Use a floor plan, a PDF, a phone photo of a printed layout or a sketch on graph paper. Label the office, the QC lab, the shop floor and any EDM or heat-treat area, and draw every man door. The draft adds routes, exits, safety symbols and a meeting point; then you check the machine rows, the chip bins and the oven against the routes.
Drag & drop your floor plan here
or
PNG, JPG, HEIC, TIFF, BMP, SVG, AVIF, WebP, PDF, DOC, DOCX, PPT, PPTX, XLS, XLSX, ODT, ODP, ODS, DXF, DWG - Hand-drawn sketches work too!
No floor plan handy? Try the included floor plan with real AI generation — no upload needed. This may take a minute or longer.
Yes — you can generate your first OSHA-aligned evacuation map draft completely free. Just upload a floor plan and our AI drafts a professional map in about 30 seconds. No credit card required.
Our AI drafts maps that follow OSHA 29 CFR 1910.36–37 and NFPA 101 Life Safety Code standards. Every map includes clearly marked exits, fire extinguisher locations, assembly points, and directional evacuation arrows. Supervisor review is required before posting to your facility.
We accept PNG, JPG, GIF, WebP, BMP, TIFF, AVIF, HEIC, SVG, PDF, DOC/DOCX, PPT/PPTX, XLS/XLSX, ODT, ODP, ODS, DXF, and DWG floor plans. Office and CAD files are converted securely before processing; PDF uploads let you choose the source page.
Most maps are generated in 20–40 seconds. Complex multi-floor plans may take slightly longer. You see the preview instantly — create a free account (no credit card) to download the file.
Yes — every generated map opens in a free drag-and-drop editor where you can move, resize, and recolor exit signs, routes, and equipment icons. Enterprise features like multi-floor support and branded maps are available on paid plans.
Yes. All uploads are encrypted in transit (TLS 1.3) and processed in secure cloud environments. We do not share your floor plans with third parties.
What you get is a draft to check, not a finished plan. Stand at each machine row and at the oven, follow the route to a door, and fix anything a pallet or cart blocks before you post it.
Before and after

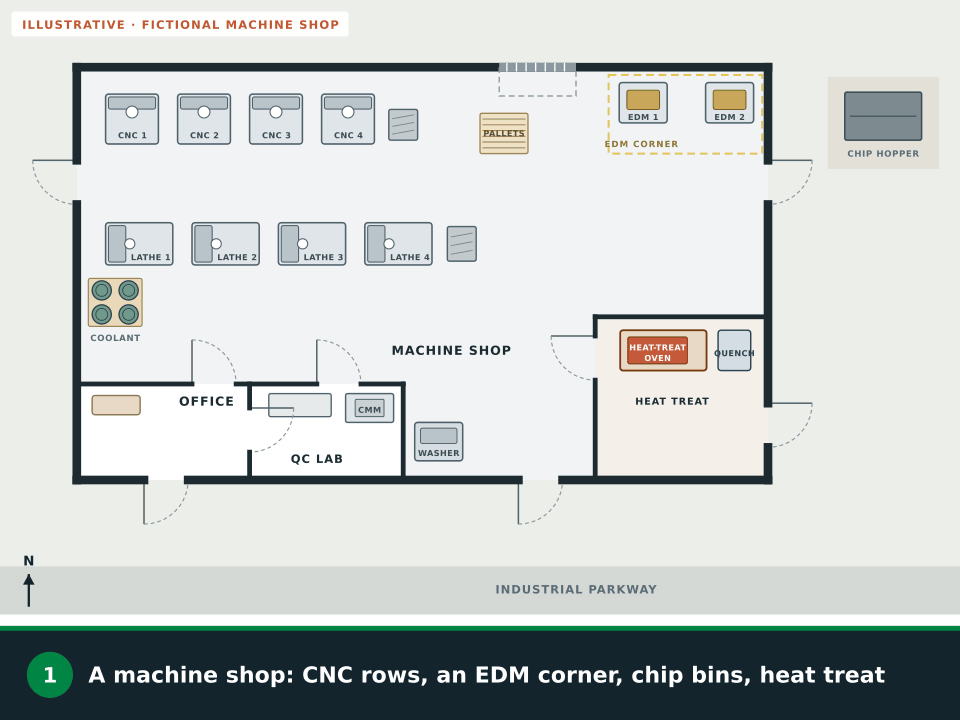

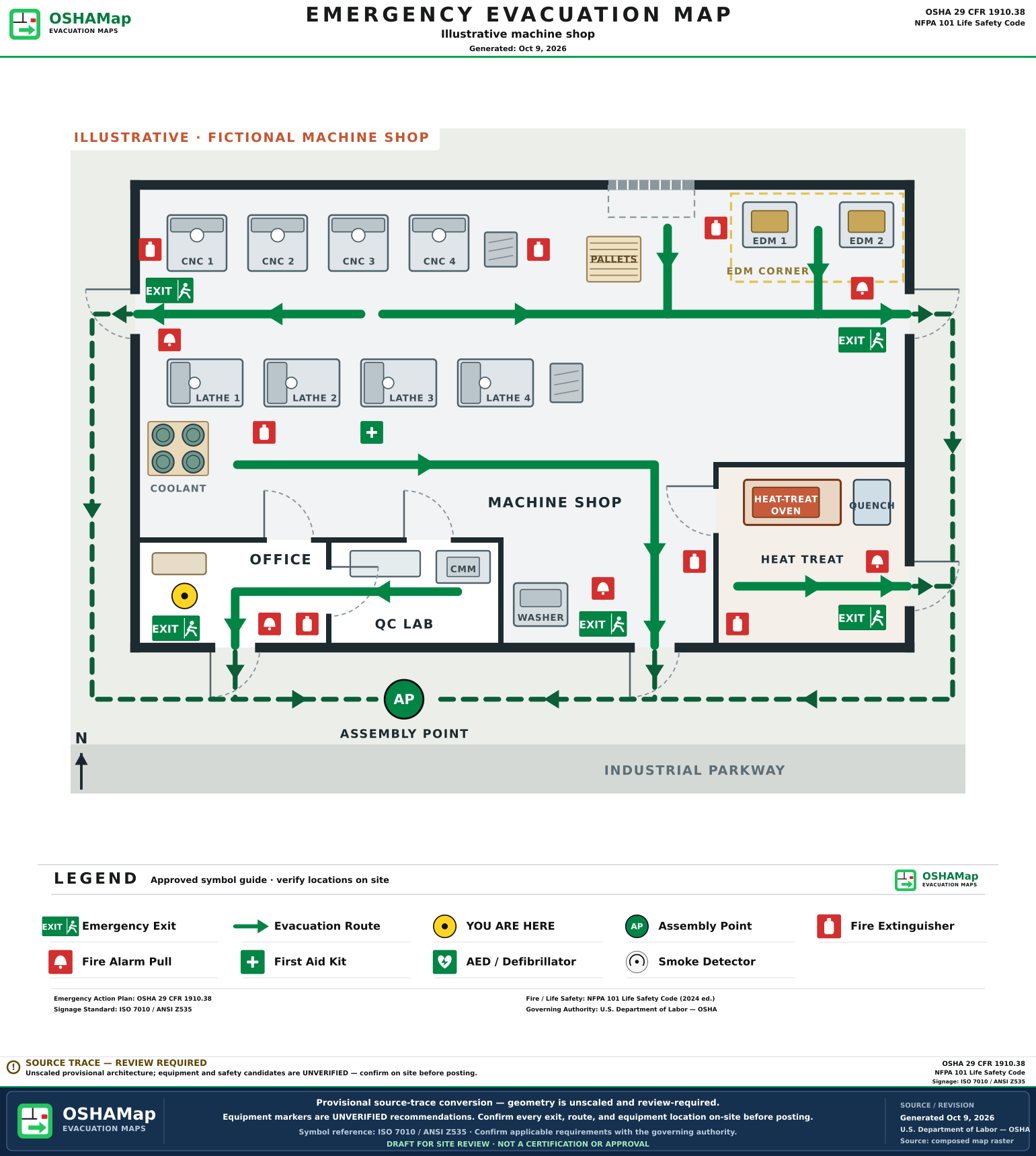

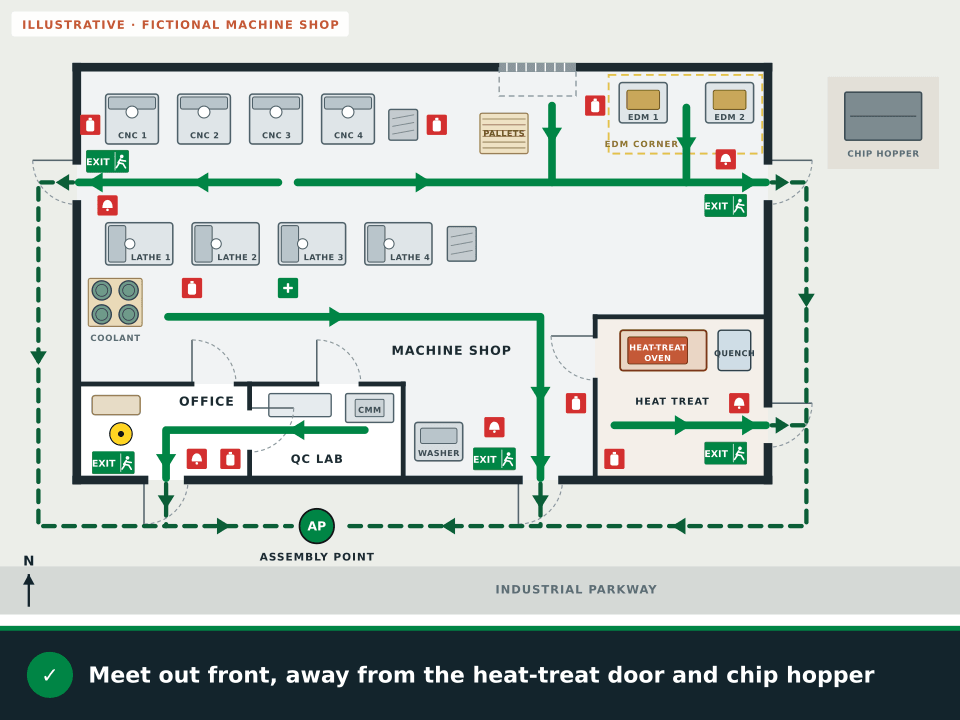

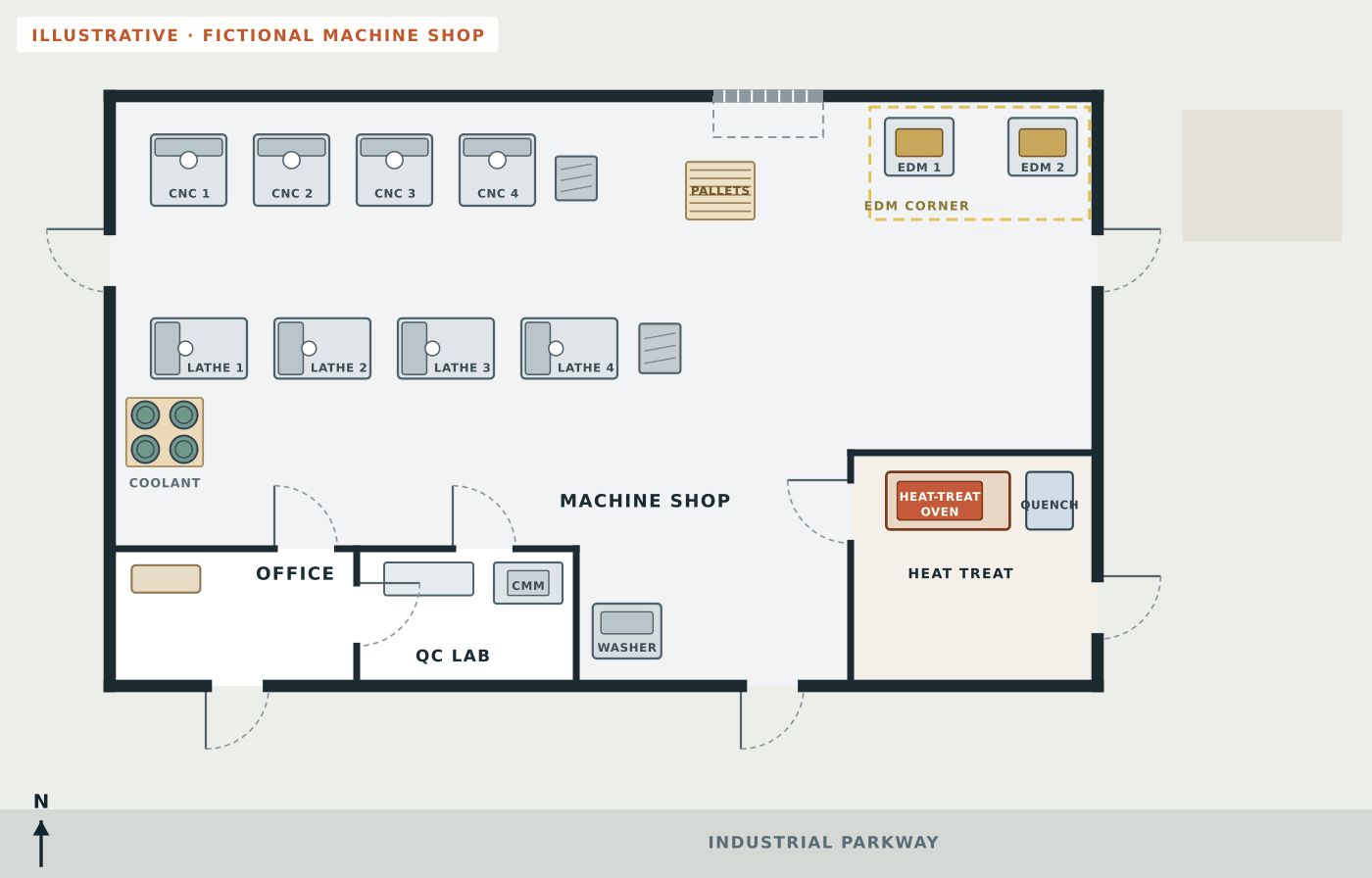

The plain plan shows the office, the QC lab and a shop floor with four machining centers, four lathes, two chip bins, coolant drums, a parts washer, an EDM corner and a walled heat-treat room with its own door. The draft adds routes to five doors, exit signs, extinguishers by the oil machines, the chips and the oven, and an assembly point out front.
