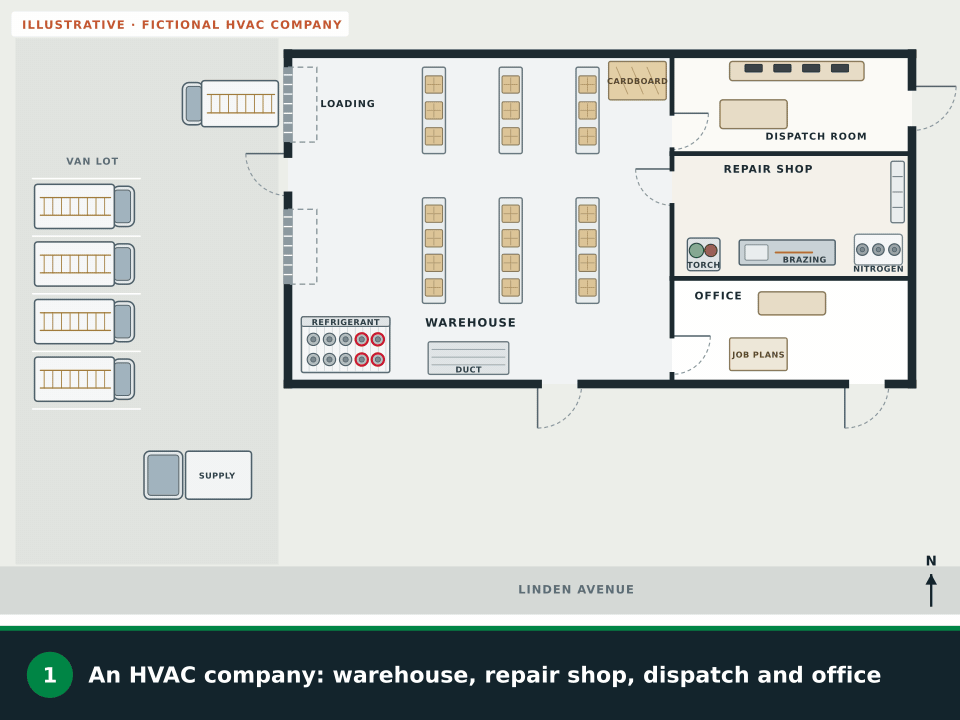

A heating and air company runs a warehouse of boxed condensers and furnaces, a cage of refrigerant jugs, a repair shop with a brazing bench, a dispatch room and an office, while service vans back up to the roll-up doors. Upload the CAD drawing of the building, a PDF or a phone photo of the plan on the wall, and the free draft marks routes from every room to the doors and a meeting point out front; then hold the cage, the torch area and the rack aisles up to the notes below.
The draft is not an inspection, and it doesn’t approve how you store refrigerant or run hot work. OSHA (federal or your state plan), the cylinder labels and data sheets, and the fire code your city adopted decide those, so walk each route with the racks full and the vans loaded before you post the map.
Refrigerant
An HVAC warehouse keeps jugs of every refrigerant the techs service, and more ride in each van. Newer systems run on mildly flammable refrigerants, classed A2L, which sit on the same shelves as the older ones. On the map, the cage goes where a fire in it can’t sit between people and a door, and the label on each jug, not its paint, says what’s inside.
| On the shelf | What to do on the map | Source |
|---|---|---|
| The refrigerant cage | Mark it on the posted map, against a wall and clear of the man doors and the walk to them. | Plain planning advice |
| Jugs with a red band on the shoulder or top | A flammable refrigerant under AHRI’s guideline; the label says which one. | AHRI Guideline N |
| Labels and markings | Federal hazmat and workplace rules require refrigerant cylinders to be labeled with their contents, so teach the crew to read them first. | AHRI |
| A data sheet for every refrigerant | Section 2 names the hazards, Section 5 covers fighting a fire involving it and Section 7 covers storage and what it’s kept away from. | OSHA QuickCard 3493 |
A van parked at the roll-up door overnight brings its jugs right up to the building. Show where the vans park on the posted map, and keep them off the walk from the west man door.
Brazing
Coils, line sets and compressors get brazed on the shop bench with a torch on a cart, and nitrogen cylinders stand nearby for pressure tests. Mark the brazing area on the map, keep boxes and cardboard out of it, and give the torch gases their own storage spots away from the shop door.
OSHA’s general rules for welding, cutting and brazing start with fire hazards: movable fire hazards near the work go to a safe place, guards confine the heat, sparks and slag where they can’t be moved, and where neither is possible the work doesn’t happen (29 CFR 1910.252(a)(1)).
No cutting or welding in areas management hasn’t authorized, in sprinklered buildings while the protection is impaired, or in explosive atmospheres (1910.252(a)(2)(vi)). Name the brazing bench as the authorized spot.
The 2021 International Fire Code covers open torches along with welding and cutting (section 3501.1), and allows hot work only in areas designed or authorized for it by the people responsible for a hot work program (IFC 2021 section 3501.3). Ask your fire code official which edition your city uses.
Oxygen cylinders in storage are separated from fuel-gas cylinders and combustibles, oil and grease especially, by 20 feet or by a noncombustible barrier at least 5 feet high with at least a half-hour fire rating (29 CFR 1910.253(b)(4)(iii)).
| At the bench | What the rule says | Source |
|---|---|---|
| Torch gas cylinders stored inside | A well-protected, ventilated, dry spot at least 20 feet from highly combustible materials such as oil or excelsior, away from elevators, stairs and gangways, where they can’t be knocked over or tampered with. | 1910.253(b)(2)(ii) |
| Combustibles around the bench | None in the hot work area, or shielding so sparks, slag or heat can’t ignite what’s exposed. | IFC 3504.1.1 |
| Openings near the work | Cracks and openings in walls, floors, ducts or shafts tightly covered, or protected by metal or fire-resistant guards or curtains. | IFC 3504.1.2 |
| Sprinklers over the bench | Left on during hot work; heads close to the work shielded with noncombustible barriers or damp cloth guards that come off when the work is done. | IFC 3504.1.8 |
| The extinguisher | At least one portable extinguisher rated 2-A:20-B:C or higher, with ready access within 30 feet of the hot work. | IFC 3504.2.6 |
The repair shop’s route runs past the bench to the warehouse door. Park the torch cart and the nitrogen against the back wall of the shop, never in the walk to that door.
Assembly point · the generator
A CAD file, a PDF, a photo of the plan posted by the door or a sketch all work. Name the warehouse, the repair shop, the dispatch room and the office, mark the man doors beside the roll-ups, and show where the refrigerant cage and the brazing bench sit. You get routes, exits, safety symbols and a meeting point to check against the racks, the cage and the van lot.
Drag & drop your floor plan here
or
PNG, JPG, HEIC, TIFF, BMP, SVG, AVIF, WebP, PDF, DOC, DOCX, PPT, PPTX, XLS, XLSX, ODT, ODP, ODS, DXF, DWG - Hand-drawn sketches work too!
No floor plan handy? Try the included floor plan with real AI generation — no upload needed. This may take a minute or longer.
Yes — you can generate your first OSHA-aligned evacuation map draft completely free. Just upload a floor plan and our AI drafts a professional map in about 30 seconds. No credit card required.
Our AI drafts maps that follow OSHA 29 CFR 1910.36–37 and NFPA 101 Life Safety Code standards. Every map includes clearly marked exits, fire extinguisher locations, assembly points, and directional evacuation arrows. Supervisor review is required before posting to your facility.
We accept PNG, JPG, GIF, WebP, BMP, TIFF, AVIF, HEIC, SVG, PDF, DOC/DOCX, PPT/PPTX, XLS/XLSX, ODT, ODP, ODS, DXF, and DWG floor plans. Office and CAD files are converted securely before processing; PDF uploads let you choose the source page.
Most maps are generated in 20–40 seconds. Complex multi-floor plans may take slightly longer. You see the preview instantly — create a free account (no credit card) to download the file.
Yes — every generated map opens in a free drag-and-drop editor where you can move, resize, and recolor exit signs, routes, and equipment icons. Enterprise features like multi-floor support and branded maps are available on paid plans.
Yes. All uploads are encrypted in transit (TLS 1.3) and processed in secure cloud environments. We do not share your floor plans with third parties.
Treat the result as a draft. Walk out from the office, the dispatch room, the repair shop and both warehouse routes in the busy season, and move whatever narrows a route.
Before and after

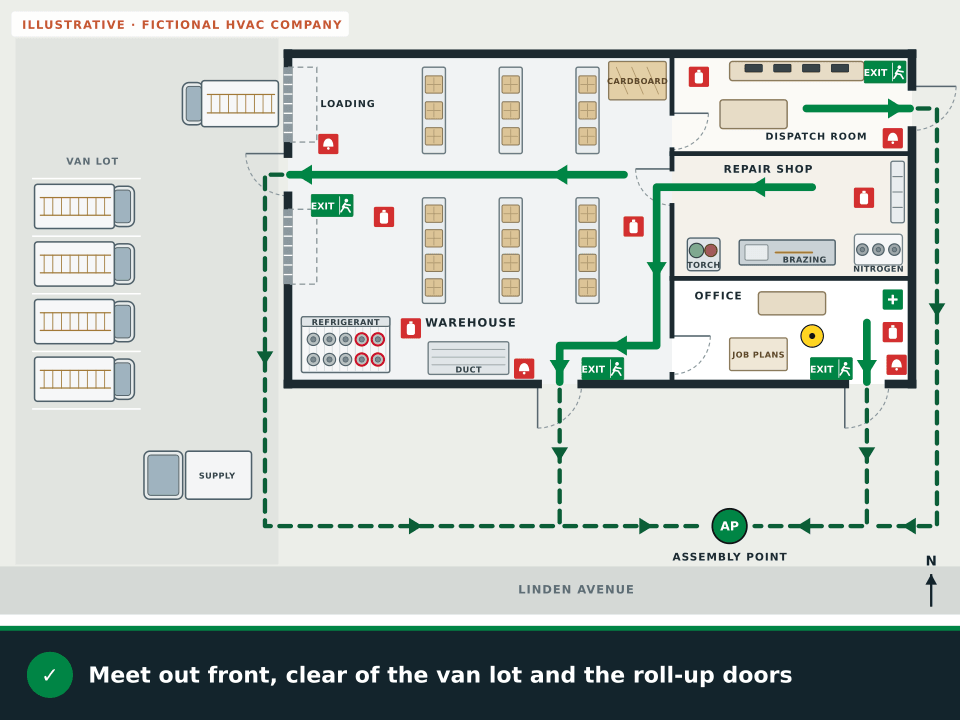

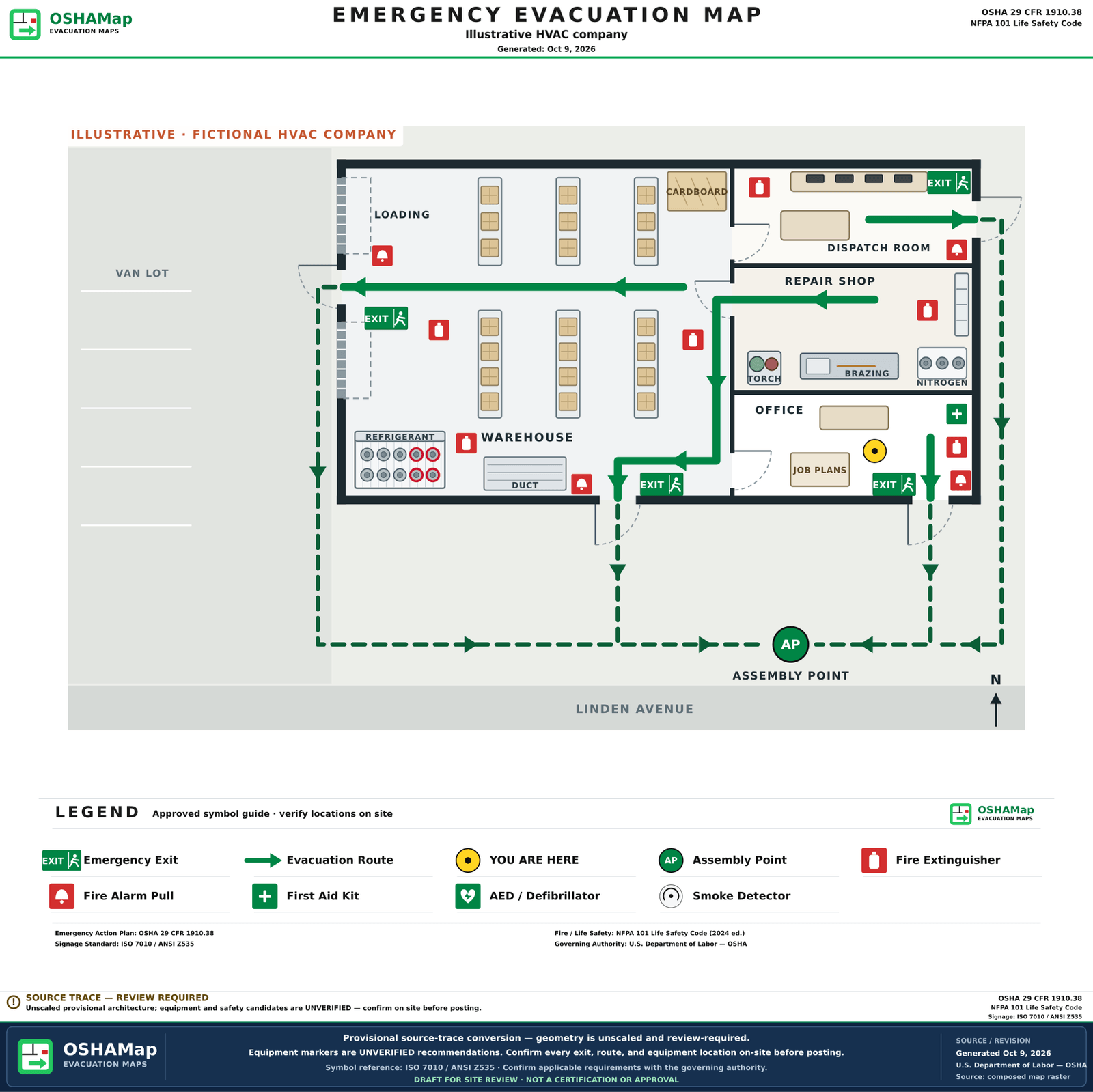

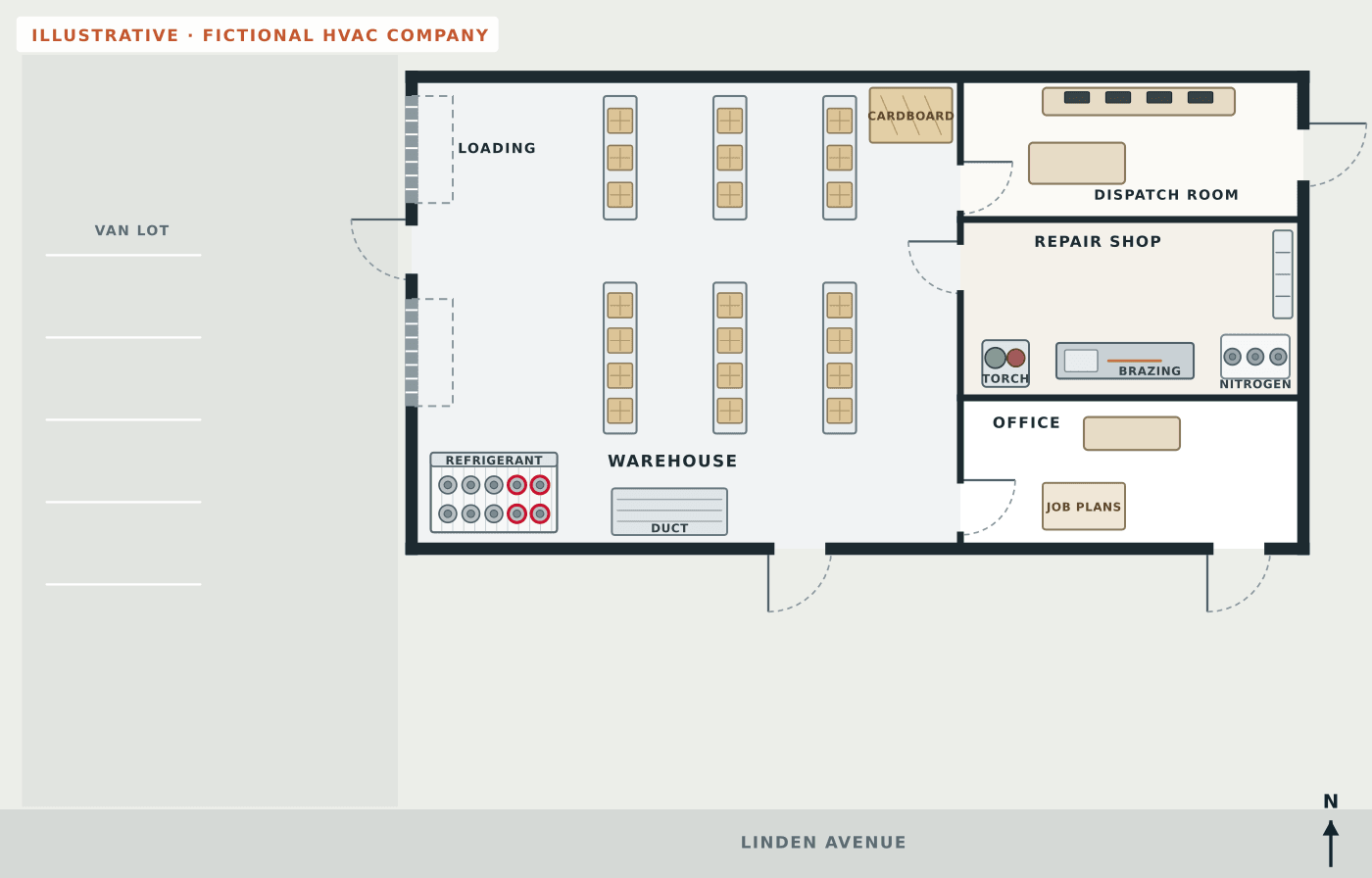

The plain plan shows a warehouse with three runs of racked boxed units, a refrigerant cage, duct stock and a cardboard bin, a repair shop with a brazing bench, a torch cart, nitrogen cylinders and parts shelving, a dispatch room with a console and a table, and an office with a desk and a job plans table. On the draft, routes lead to the office front door, the dispatch room’s east door, the warehouse’s south door and its west man door; extinguishers, alarm pulls, exit signs and first aid are added, and the assembly point goes out front.
Added on top of the HVAC company plan
Boxes and aisles
A heat wave fills the warehouse with boxed units on the racks and more staged on the floor for tomorrow’s installs, and the cardboard from every unit that gets unboxed piles up behind them. The draft shows the aisles as the plan draws them; on a July morning they may be a lot narrower.
Check the routes in July or January, when the most boxes are on the floor, not in the slow weeks. If a pallet of condensers has to wait in an aisle overnight, it goes in one the map doesn’t use as a route.
The ceiling clearance numbers come from the fire code your city adopted, which may be an edition other than 2021, so ask the fire marshal which one applies.
In a customer’s home
Much of the brazing an HVAC tech does happens away from the shop, on a furnace in an attic, a coil in a closet or a line set in a crawl space, in somebody else’s house. The shop map doesn’t cover that, so each crew needs a short plan of its own: who watches for fire, where the extinguisher stands and how everyone gets down and out.
Where the fire code calls for a fire watch during hot work, it continues for at least 30 minutes after the work ends, and the fire code official or the responsible manager may extend it. It isn’t needed where the hot work area has no fire hazards or combustible exposures (IFC 2021 section 3504.2.1).
The fire watch keeps fire-extinguishing equipment readily available, is trained to use it, puts out spot fires and communicates an alarm (IFC 3504.2.3). Hot workers and the fire watch are trained in using portable extinguishers (3504.2.4).
When the job is construction work, such as installing a system in a house being built, OSHA’s construction rule assigns someone to guard against fire during the welding, cutting or heating and for a sufficient period after it, with no fixed number of minutes (29 CFR 1926.352(e)).
In most attics the only way down is one pull-down ladder. Keep the torch kit and its hoses away from the hatch so the tech and the fire watch can reach it without stepping over anything.
The first four items follow the fire code’s pre-hot-work check (IFC 2021 section 3504.3.1) and its extinguisher rule (3504.2.6); the last two are plain planning advice, and your city’s edition may differ.
